Prof van Herk on the MR-linac and other ways to improve radiotherapy

Before joining The Christie as Chair in Radiotherapy Physics, Professor Marcel Van Herk was an established leader in his field and a world expert in using image guidance systems for radiotherapy. His work over the last 30 years, including the Van Herk formula, has helped millions of people benefit from more effective radiotherapy.

Here, Professor Van Herk explains how he’s using the MR-linac in his research to help make new ground-breaking cancer discoveries.

What’s the focus of your research at The Christie?

All of the work I do is about making radiotherapy treatment more precise. The more precisely you can hit a tumour, the less healthy tissue you hit. Which means better outcomes for patients. For example, we’ve recently discovered that the top part of the heart is particularly sensitive to radiotherapy. So we now know we must avoid this particular area when delivering the treatment to lung cancer patients.

Since I moved to Manchester, my group has expanded to 3 senior lecturers, 4 postdocs, and 17 PhD students. As ever, our group is keen to improve precision of radiotherapy. This work follows several avenues.

The main focus of the group is to learn from every patient treated. We look at how thousands of patients were treated in the past and relate the outcomes to detailed information of their treatment.

Since 2017, we have a fantastic infrastructure (and appropriate governance) in place allowing use to research data of all patients treated in The Christie – unless opted out. Next month, we will introduce heart-sparing lung cancer radiotherapy as direct consequence of this work, in what we call rapid learning trial.

As of mid-March, all patients will receive the newly optimised treatment, using routine data collection to confirm that the new treatment is indeed better. Several researchers are looking at practical, ethical, statistical, and data collection aspects in an MRC grant.

In the CRUK-funded RADNET project, we study what other diseases patients may have next to their cancer and see how these interact with the cancer and their treatment, with an ultimate aim to personalise radiotherapy to each patient’s circumstance. For instance, we are exploring the effects of muscle mass, sarcopenia.

Then, we work to optimally utilise the equipment. 2 of my PhD students are exploring how the amount of imaging dose in image guided radiotherapy for children and adults can be reduced without loss of information. Their recommendations are likely to change clinical practice.

How are you working on improving the precision of radiation?

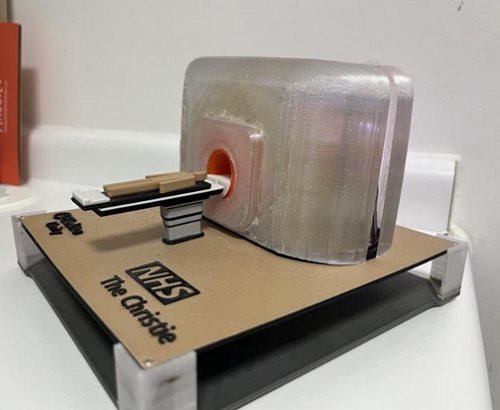

In the past, the problem with radiotherapy was that you couldn’t always see what you needed to hit. But the new MR-linac (radiotherapy with an MRI scanner for image guidance), which Christie supporters helped to fund, can give us the very best image guidance for delivering radiotherapy thanks to the superior image quality of MRI. Now we need to develop the systems that make the best use of this technology for everyday treatment.

After introducing the MR-linac for routine care, focusing on tumours that are difficult to see on CT, we are now exploring new possibilities. The MR-linac offers unique possibilities to study patients’ biological response to radiotherapy.

Our MRI group (recently grown to 5 members) is now actively developing and applying so-called oxygen enhanced imaging. This technique measures the oxygen consumption of tumour and healthy tissues, which is important factor in tumour control and toxicities.

A new allied health professional academy has 5 radiographer PhD students optimising the delivery side of things, with as aim to perform a clinical trial of biology-adapted radiotherapy within the next 5 years.

What is the Van Herk Formula?

This is the formula to work out the proper safety margin to treat a patient – it should be big enough to safely cover the entire tumour with a high dose, but small enough to avoid giving too much dose to the healthy tissues in each patient.

Uncertainties in radiotherapy continue to have my interest. We have explored anatomical changes in lung, cervix, and head and neck cancer patients, and use this information to predict when best to intervene in routine treatment or to select patients to get the best treatment on the different treatment machines the Christie has.

What do you hope to achieve next at The Christie?

It’s all about precision and personalisation, so trying to make the treatment and equipment optimised for every patient that comes through the door.

This remains my long-term goal, and we have managed to make steps to start make this vision a clinical reality.

To ensure we can keep making breakthroughs in cancer treatments, The Christie Charity is running a campaign to raise funds for cancer research. A donation from you today can help fund the research to bring the next breakthrough into focus.

MR-linac update – April 2023

It has been all things go here on the MR-linac! We have been working hard to get our new team up to speed, pursuing further education, focusing on our individual research projects so that we can welcome more and more patients through our doors.

In the first quarter of the year, we have recruited 37 patients and healthy volunteers to trials for treatment and imaging on the MR-linac. Alice is now supporting or leading the co-ordination of MR-linac-based trials including PRIMER, MINION, BIOCHECC, HYPROGEN, QUANTUM, CPAP and RO-PIP. The observational team continue to co-ordinate for MOMENTUM and MRBIO and we are very glad for their support.

The team have taken on a new professional development opportunity from the University of Alberta. This course has focused on MR safety, spin physics, image contrast and much, much more. Although challenging, it has been an interesting topic, and everyone has passed with flying colours!

Cynthia (consultant research radiographer) and Lisa (principal radiographer) contributed as subject matter experts: with Cynthia being the curriculum content advisor and then auditing the course with others prior to it going live. It is the first CPD offering of its kind in Canada and the 2nd cohort it has been run in. The team has taken a lot from this course and are now implementing this knowledge into our day-to-day operations on the MR-linac.

The European Society for Radiation and Oncology (ESTRO) conference is just around the corner. 4 members of our team have had their proposals accepted and are now fine tuning their projects in preparation of this upcoming event.

List of projects

  • Lisa McDaid: ‘Incidental findings in non-patient volunteer MR imaging: a single centre experience’
  • Lucy Davies: ‘Does the presence of a mag trace preclude adaptive breast radiotherapy on an MR-linac’ and ‘Evaluation of patient positioning for accelerated partial breast irradiation on an MR-linac’
  • Mairead Daly: 'Evaluation of intrafraction duodenum positional stability for pancreatic SABR on the MR-linac'
  • Abbie Clough: ‘Impact of advancing radiographer practice on MR-linac treatment times’

Travel arrangements are now in place for their journey across to Vienna! We wish them all the best of luck and look forward to sharing their work in a future blog.

In other news, our team has new published work! Michael Dubec, clinical scientist (MRI) and PhD student (who we work closely with) and his supervisor Professor James O’Connor have published “First-in-human technique translation of oxygen-enhanced MRI to MR-linac system in patients with head and neck cancer”. Thank you to all the participants who allowed us to scan you on the MR-linac for this very important work. The paper can be found on thegreenjournal.com.

In a final update for this month, we modified the MR-linac bunker last year so that patients undergoing treatment and imaging would be able to breath pure oxygen. This has allowed us to study oxygen-enhanced MRI – a method of acquiring repeat images over a period where the participant first breaths medical air, then pure oxygen and then is switched back to medical air again.

In doing this, we can see changes in the region being imaged that take up or reject oxygen uptake. These areas that do not take up oxygen are called ‘hypoxic’. Some cancers are entirely hypoxic or have hypoxic sub-regions. These areas can be resistant to radiotherapy and other cancer treatments. This work is an important first step in learning where and when these hypoxic regions develop so that we can better learn how to improve treatment to them.

Next month, we will introduce you to some of the other teams behind the scenes at the MR-linac and associated research.

January 2023

We’re back! After a longer than expected hiatus, we are back to blogging about the MR-linac at The Christie.

And there has been a lot of change on the MR-linac since the last blog post. Firstly, a few members of the team have moved to different roles and there are 3 new radiographers – Jay, Ben and Alice.

Jay, an avid reader and football enthusiast has joined us after previously working on an MR-linac in the private sector and at the Royal Marsden. Ben has moved across from the treatment floor here in radiotherapy and when not at work, he likes to try his hand at DIY. Alice, who most recently worked at the new Christie at Macclesfield centre, unwinds with crochet and hiking in her spare time. All 3 are bringing a wealth of experience and are assets to the team, helping to improve the service and patient experience.

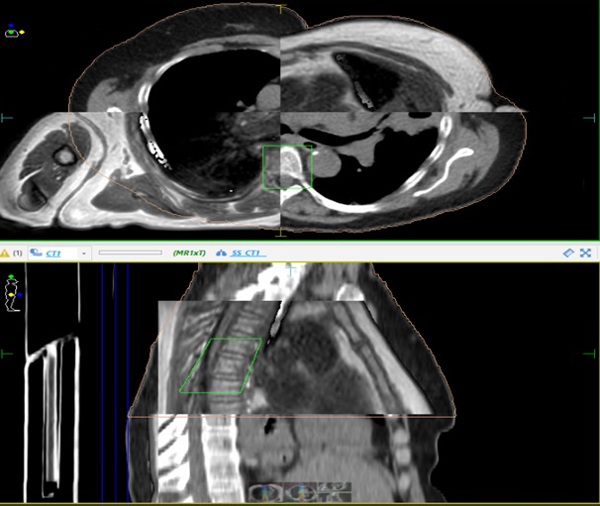

Moving onto the technical news, we have expanded the patient cohorts we treat on the MR-linac. In May 2022, we treated our first patient with pancreatic cancer. These tumours can be difficult to see with the conebeam CT (CBCT). Using MR imaging we can better visualise target improve treatment accuracy. Using our Adapt to Shape (ATS) online re-planning, the interdisciplinary team can re-contour the position of organs close to the tumour daily and then plan the treatment according to that position.

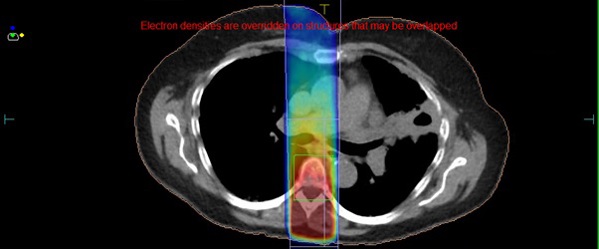

Below is a picture of a treatment plan for a patient with a pancreas tumour. Note the high dose region in the red colourwash, covering the target (plus a margin for breathing motion) in the blue and cyan lines.

Bladder patients are another cohort we are treating and with the installation of the piped oxygen we can connect carbogen gas. The administration of carbogen and nicotinamide (BCON) during radiotherapy is a treatment regime that was developed at Mount Vernon hospital as an alternative for patients with bladder cancers, for whom chemotherapy would be considered too aggressive. The patient breathes high flow oxygen (carbogen) whilst receiving radiotherapy treatment this oxygenates tumour cells to make them more sensitive to radiotherapy. We can combine this with treatment on the MR-linac, where the patients’ bladder and nearby organs can be re-contoured daily to improve treatment accuracy.

We have also started Oxygen Enhanced MR imaging (OEMRI), a technique that visualises the oxygen uptake in cells in the body by getting patients to inhale oxygen whilst being imaged. This highlights areas that have poor oxygenation. 3 trials using this technique are OE H and N, recruiting patients and volunteers to help develop head and neck imaging, Bio-CHECC, which focuses on patients with locally advanced cervical cancer and Hyprogen, imaging patients with advanced prostate cancer. This is exciting as it has the potential to give us additional information about treatment response in (near) real-time and the prognosis of certain tumours.

During 2022, we recruited 131 patients across 6 MR-linac specific research studies and we are hoping that 2023 is just as or even more successful.

Our team are constantly hard at work with developing new techniques and opening new research studies – there are a lot more updates to come!

October 2021

Our first MR-linac head and neck cancer patient

We have now treated our first head and neck cancer patient on the MR-linac.

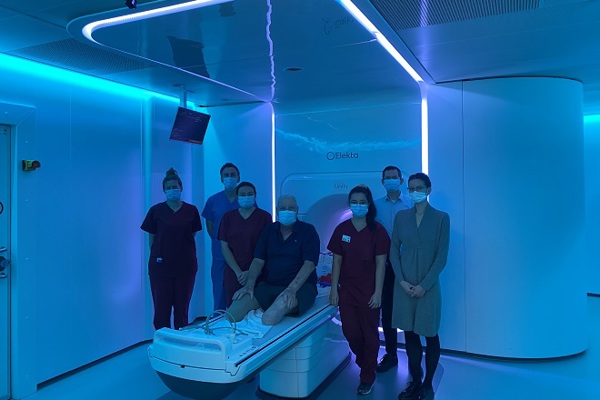

Bob from Whitefield completed 20 fractions of head and neck radiotherapy on the MR-linac in October 2021. Under the care of Dr Andrew McPartlin, Bob has coped very well throughout his treatment.

As well as receiving support from his clinical team, Bob was also supported during his treatment by his 2 sons. One of his sons lives near him and one lives in Spain and came over to help him while he was having his treatment.

Being able to treat more patients with different types of cancer is very exciting for the whole multidisciplinary team on the MR-linac. It means we can deliver more targeted radiotherapy for more patients, and deliver more personalised care with kinder treatments.

July 2021

New endeavours and exciting times

Over the past few months, it’s been all things new here on the MR-linac. Firstly, we have 2 new members of our clinical trials team – Philip Teles Amaro and David Roberts. Both will be valuable assets, helping to deliver treatment, conduct scans and further enhance the patient experience on our MR-linac.

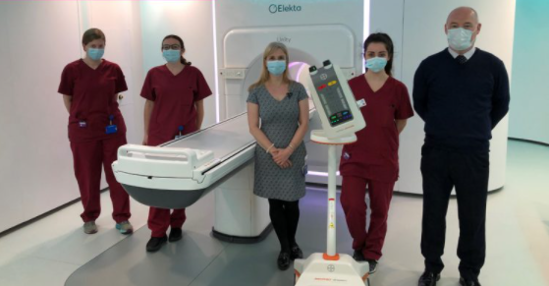

We have also had some new equipment delivered. The Bayer-Medrad™ contrast injector now installed on our Unity MR-linac is believed to be a world first. The contrast injector will allow the radiotherapy team to administer contrast agent to further enhance our scans, and potentially future treatments. We have also had a gas panel installed to allow treatments under general anaesthetic, and our team are working on the development of oxygen-enhanced images for the MR-linac – this could change how we treat patients in the future.

We’re also starting to treat new groups of patients on our MR-linac. In January 2021, we started treating prostate patients under the PACE-C trial. This means we can now treat patients with intermediate to high-risk prostate cancer.

After much complex work in the background, we have also started treatment of our first patient with lung cancer. The potential benefits we could provide to this patient group with adaptive radiotherapy is very exciting for our whole multidisciplinary team.

As the indication list for our MR-linac grows, we’re able to treat patients with increasingly complex cancers in more difficult locations. We’ve started identifying our first patient with oropharyngeal cancer for treatment.

Our busy team have also helped expand the knowledge base of the MR-linac, with assistance in new research publications including Lee Whiteside “Development and results of a patient-reported treatment experience questionnaire on a 1.5T MR-linac” and Claire Nelder “Adaptive Radiotherapy in the Management of Cervical Cancer: Review of strategies and clinical implementation”.

Outside of work, our MR-linac team are currently competing in the “Miles for radiotherapy” challenge to help raise awareness of the cause and raise some money for charity.

Stay tuned for more exciting news from the world of the MR-linac over the next few weeks.

February 2021

This month, we introduced adaptive fractionated cervical radiotherapy on the MR-linac. This made us the first site in the Elekta MR-linac consortium to do so!

To coincide with cervical cancer awareness week in the UK, the MR-linac team completed the MR simulation. We did this with a view to treating our first patient with cervical cancer fully on the MR-linac – this would be 25 fractions.

We have been preparing for this and searching for someone suitable to treat for quite some time.  But now the day is here!

Our simulation scans took place on 18 January, followed by a day 0 mock treatment with the full team present to ensure everything would run smoothly on 29 January. After this, treatment began in earnest on Monday 1 February.

How did we get there?

Lots of hard work goes on behind the scenes, in order to ensure new treatment sites are treated safely and accurately.

Let us walk you through the process…

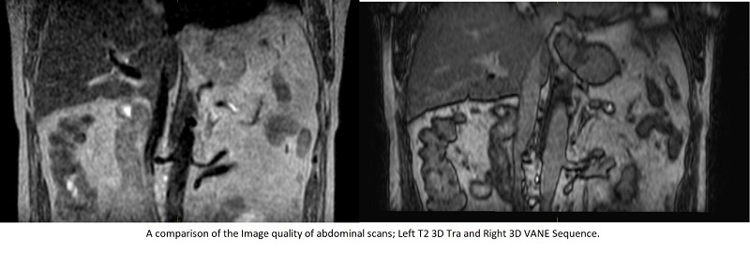

Optimising images

To start with, we need to make sure the MRI scans from the MR-linac are fit for purpose. In this case, ‘fit for purpose’ means the scans define the areas to be treated or avoided. It also means we can use them to match each daily treatment to assess whether or not adaptation is required to account for anatomical or physiological changes.

Before we can do this for real treatments, our radiographers acquire MR images from volunteers taking part in the PRIMER and MOMENTUM studies. The radiographers and doctors then assess the scans to see if these images work for treatment with our team of physicists, testing new imaging sequences until they are treatment ready.

The PRIMER and MOMENTUM trials are data collection studies, investigating clinical and technical data of patients having treatment on the MR-linac. The data is used for service development, and consequently implementation of the best evidence based practice on the MR-linac.

Contouring workshop

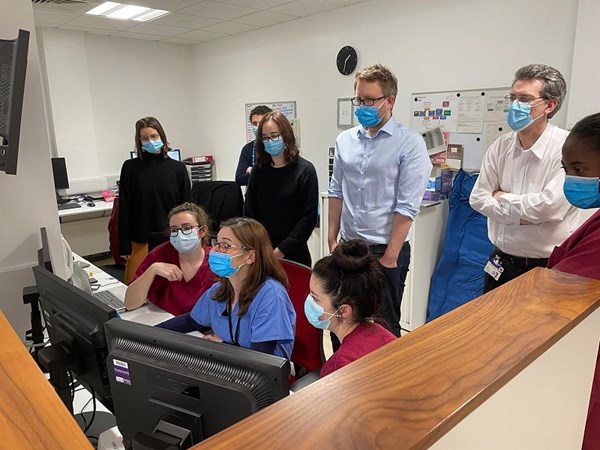

We recently held a workshop so our radiographers, physicists and doctors could prepare for day 0, using the contouring tools on Monaco (our computer planning system).

For our cervix treatment, one of the doctors will contour the patient’s anatomy on a daily basis using the ‘adapt to shape’ (ATS) planning system.

As organs within the body move during the course of a radiotherapy treatment, the ATS software will allow us to adapt the plan to the patient’s anatomy daily. This means we can improve treatment accuracy and lower the dose to the surrounding healthy tissues.

Day 1 treatment

The focus and determination of our interdisciplinary team for the last few years has all been worth it. We successfully treated our first fraction of radiotherapy for a cervix patient, adding to the treatment sites commandeered by the MR-linac.

Stay tuned for our next blog to see what is next on the horizon.
